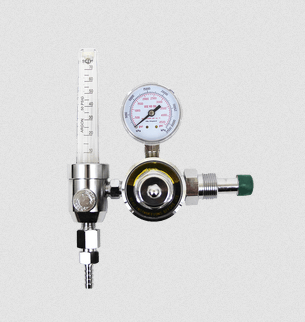

Welding Flowmeter Regulator - 85 Series Argon/CO2 Regulator - Part No. BS85AR580

The Blue Star™ Argon / CO2 Flowmeter Regulators provide heavy duty performance for optimum controlled gas flow results.  They are produced with a Teflon seat which filters out any contamination from entering.  Also, our Teflon seat reduces CO2 freeze-up!

Specifications

• Piston-type Design

• Preset Pressure set to 25 PSIG for Accurate Flow Control


• 50 CFH Models

• Built-in Relief Valve

• Maximum Inlet: 3000psig

• 5/8" - 18" RH(F) outlet fitting

• Teflon Seat

• Argon, CO2 and Argon Mixed Models

• ITEM NUMBER	OUTLET PRESSURE (psig)	MAX FLOW	INLET FITTING	GAS SERVICE
  BS1480AR	25	50	580	ARGON / CO2
  BS1480ARWH	25	50	580	ARGON / CO2
  BS1480CD	25	50	320	CO2
  BS85AR580	25	50	580	ARGON / CO2
  BS85AR580DF	25	50	580	ARGON / CO2
  BS85CD320	25	50	320	CO2




  • Argon Regulator with Dual Flowmeter CGA-580
  • Regulator is preset at 50PSIG.
  • Body machined from class “A” brass. Blue Star Products Contain Copper Threading And Are Made From Complete Solid Bar Stock Where Applicable
  • Polycarbonate flow tube and hood are impact resistant for maximum durability and service life durability and service life.
  • Monitoring two separate gas flow settings at the same time. Calibrated for argon, helium and 75% argon / 25% CO2 mixed gases.
  • 2” gauge and two flowmeters.
  • Parts are Victor Compatible
  • Flowmeter is backpressure compensated to ensure accurate readings when line restrictions are present.



  Blue Star Products Are Flame Tested in the U.S.A. for Superior Performance
• American Quality Control
• Blue Star Products Contain Copper Threading And Are Made From Complete Solid Bar Stock Where Applicable
• Solid, Not Hollow, Heavy Duty Gas Apparatus Accessories To Increase Life, Heat Dissipation, And Overall Performance
• UL Listed
• Parts are Victor Compatible
